TrendRadar
Find the next trend early.

In-play

Last closed hour of 5m bars versus prior hours, measured on the exchange with the largest 24h volume. Full points: RVOL 4×, |return| 3σ, range 2.5× a normal hour. Score = 85% of that mix (RVOL 55% · return shock 27% · range 18%) + up to 15 for venues that agree on direction and have RVOL ≥ 1.4. Enters at 75, stays until below 60.

Min 24h Volume (USDT)
Waiting for 5m snapshot…
# Symbol Score State RVOL 1h % σ Range Venues
Loading…
Exchanges
Ranking by
↑↓ navigate Last updated: —
# Symbol Trend Score Trend SNR 24h Vol Σ OI Σ USD OI Imb Σ Change (24h)
Loading…
status … poll — A upd — B upd — B msgs — venues —

Pre-pump detector (1h candles)

# Symbol Ex score_z absorb oi_cvd OI Σ resid px
Loading…

Intensity preassure now

BUY ignition λ
ExSymbolλ
SELL ignition λ
ExSymbolλ

Recent alerts

Time Ex Symbol Side λ
SOL
—
—
—
Flip
Uptrend Downtrend Undefined Alert Vol profile Donchian NW Env ICT FVG/OB Buy/Sell pressure 1H·4H flip
Alerts
Loading chart…

Patterns test

Each block has its own filters and Scan. Click ? next to a name for the diagram. Bottom Scan runs all patterns at once. Age = setup duration to the latest closed candle (hours or candles).

Brush ? Brush pattern
Age
Min flip %
Max range %
Linear trend ? Linear trend pattern
Age
Max |z|
Step ? Step pattern
Age (new range)
Max range %
Min step %
CRT AMD ? CRT AMD pattern
Age
Min manip %
Wyckoff Spring ? Wyckoff Spring pattern

Long (R-R-G): high1 > high2, low2 < low1; bar 3 green fully inside bar 2. Short = mirror (G-G-R).
Age (from reclaim)
Max signal age

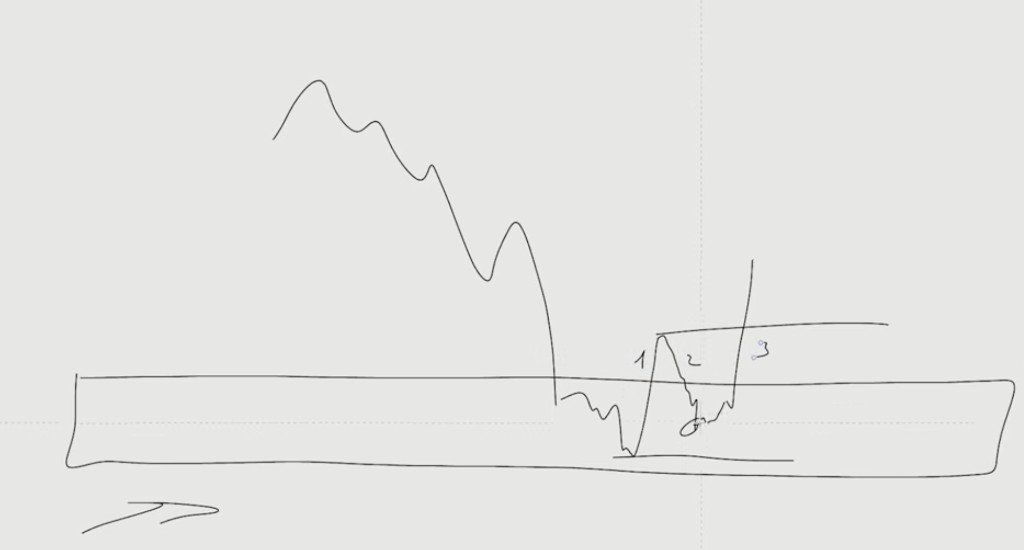

Demand Reclaim ? Demand Reclaim pattern

Demand / Supply reclaim — zone of interest (OB / demand) → displacement (1) → correction entry (2) → expansion (3).

Entry at the higher-low retest in the zone. SL below the pattern low. TP at peak 1. Short = supply mirror.
Age (from entry)
Max signal age
Max zone %
TF
Uses selected exchanges + min volume from Scanner
How it works
  • Brush: MM-style range — price oscillates between bounds with frequent flips, high chop (path ≫ net), both-side touches, and a fairly regular flip period. Chart shows the real high/low channel (not an OLS residual band).
  • Linear trend: OLS close ∼ a + b·t; max |residual|/RMSE ≤ z-max, solid R², non-zero slope. Age = length of the longest qualifying suffix.
  • Step: long tight accumulation range → short level shift → new tight range at the new level (up or down). Age = length of the current (post-shift) range.
  • CRT AMD: 4h UTC accumulation from 1h bars → manipulation (sweep beyond low/high ≥ min %) → distribution (confirm close back inside the range). Shown only on M/D stages. Always evaluated on 1H, even if TF = 4H.
  • Wyckoff Spring: hard — R-R-G long: high1 > high2 and low2 < low1; bar3 green inside bar2. Short = G-G-R mirror. Entry/SL/TP 1:1.
  • Demand Reclaim: POI zone (order block / demand) → displacement above zone (peak 1 = TP) → higher-low retest in zone (entry 2). SL = pattern low. Short = supply mirror. video ~3:25.
  • Age: from the first candle of the setup to the last (hours or bar count). The filter compares that age to the threshold (> 4h, < 10 candles, …).
# Symbol Type Age Metrics 24h Vol Σ
Press Scan — uses selected Scanner exchanges

Dynamic channels

TradingView Dynamic Linear Regression Channel (2σ, reset on close outside the band). Ranked by current-segment quality: |Pearson r|, length, width, |slope|. ch_pos = (close − lower) / (upper − lower); edges at 10% / 90%. Candle colors + stacked pane = HMM Regime Probability (Bull / Chop / Bear).

TF
Min |r|
Lookback
Uses selected exchanges + min volume from Scanner
# Symbol |r| pos
Press Scan — rank DLRC quality

Correlations

Pearson ρ on log-returns of the last 100 candles vs BTC and ETH on the selected Scanner exchanges. Shows either correlated (|ρ| ≥ high) or uncorrelated (|ρ| ≤ low on both anchors).

Mode
|ρ| ≥ (high)
|ρ| ≤ (low)
Period (candles)
TF
Uses selected exchanges + min volume · period in candles
# Symbol Class ρ BTC ρ ETH Bars 24h Vol Σ
Press Scan — correlations vs BTC/ETH

Orderflow

Filter
Watch symbol
WS + z_I · aggregates only
# Symbol State Side Score Label OI Δ3×5m OI Δ3×15m I 1m zI Δ% Large Updated
Waiting for orderflow poller… open this tab with collector running
100×1m cluster chart Select a symbol · footprint · Δ dots · POC · absorption nodes
buy large buy sell large sell POC absorption node Δ+ Δ− tracks: Tape+QI · CVD Σ · OI Σ BURST PUSHER ABSORB
Select a row to load 100×1m cluster candles

Absorption

Footprint NODE: Bid×Ask cluster with vol ≥3× candle median and nearly equal legs (buys absorbed at highs / sells at lows → reversal bias). Highlighted on Orderflow chart. Plus prolonged ACCUM on 1h (pd_sell_absorption_evt — metric B).

NODE Real tape footprint only. Vol ≥3× median node in the 1m candle · min(bid,ask)/max ≥0.55 · both legs thick. Cyan box on OF chart.
EVENT Streak of ≥12×1h bars: bear structure + sell_evt z≥1 + ret₁₂ₕ≤0. Signal only — not an auto entry.
Metric B Honest absorb: |signed| when sell aggression meets non-negative return (bids absorb sells).
BOS level Last swing high under bear structure — hard BOS target (orange). Blue band = 12h absorb window before event.
Footprint nodes · Metric B ACCUM · Binance

Footprint nodes (Orderflow Bid×Ask)

Prolonged ACCUM (1h metric B)

Liq Map

AetherEdge Adaptive Liquidation Heatmap (estimated) — high-volume bars spawn leverage-tier liquidation bands (5×…100×) that extend right until swept. Viridis intensity · AI-learned tier reliability. Honest scope: OHLCV only — not exchange OI/liq feed.

Symbol
TF
Side
Max bands
Min vol ×
Palette
Uses Scanner exchange · candle limit
Live bands —
Shorts above —
Longs below —
Strongest tier —
Building map…
# Side Tier Level Heat Status
Press Build — AE-LIQ estimated bands
How it works
  • Spawn: bars with volume ≥ Min vol × SMA(20) project closes to liq prices at 5×/10×/25×/50×/100× (distance ≈ 1/leverage).
  • Bands: thin horizontal lines from spawn bar, extended right until price sweeps them (wick or close).
  • Merge: nearby same-tier bands reinforce intensity instead of duplicating.
  • AI: online-learns which tiers act as magnets (touch + ATR reaction) and brightens them.
  • Palette: Viridis purple→teal→yellow (CoinGlass-like). Estimated — not exchange liquidation feed.

Strategies

Playbooks built only from TrendRadar features. Each card has tab-by-tab steps and an honest backtest.

Loading catalog…

Bot & notifications

API keys for the trading bot (strategy coming later) and Telegram alerts. Stored locally in this browser.

Trading exchange

Telegram notifications

Telegram bot credentials

1. Bot token

  1. Open Telegram and find @BotFather.
  2. Send /newbot (or /mybots → your bot → API Token).
  3. Copy the token like 7123456789:AAH... into Bot token.

2. Chat ID

  1. Personal chat: message your bot, then open https://api.telegram.org/bot<TOKEN>/getUpdates and take message.chat.id.
  2. Or use @userinfobot / @getidsbot — they reply with your numeric id.
  3. Group / channel: add the bot, send a message, then check getUpdates. Group ids are usually negative (e.g. -100123…). For channels the bot must be admin.

3. Exchange API keys

  • Gate: Account → API Management → Create API Key (Futures). Enable trade if the bot will place orders; restrict by IP when possible.
  • OKX: Profile → API → Create V5 key. Copy Key, Secret, and Passphrase. Prefer trade-only permissions, no withdrawal.
  • Binance: Profile → API Management → Create API. Enable Enable Futures. Do not enable withdrawals. IP whitelist recommended.
  • Bybit: Account → API → Create New Key. Choose System-generated / Self-generated, enable Contract Trade. No withdrawal; bind IP when possible.
  • MEXC: Account → API Management → Create API. Enable futures/contract trading as needed. Keep withdrawal disabled; bind IP if available.

Keys stay in this browser’s localStorage until you clear them. Do not commit them to git.
